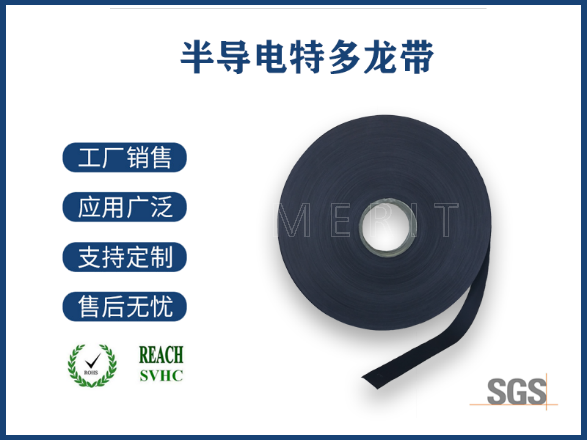

[產品說明]: 由特多龍帶經過半導電膠浸漬烘干成型，纖維經過充分梳理，縱向強度高，電阻小。Product Description: Made of Tetolon tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.[應用方式]: 適合用于電纜導體和絕緣線芯外，起
Product Description: MadeofTetolontape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.
Application: Suitable for cable conductors and outer of insulation wire cores, lashing, isolation, can also be used for cables under the metal layer, cushion and shield.
一、主要技術指標：
Main specification:
產品規格Specification（μm）
基重Basis weight（g/m2）
拉伸強度Tensile strength（N/cm）
伸長率Elongation（%）
表面電阻Surface resistance(Ω)
體積電阻Volume resistance(Ω.cm)
瞬間穩定性Short-term stability（℃）
長期穩定性Long-term stability（℃）
180±30
150±10
150↑
20↑
1000↓
1*106↓
230
145
200±30
170±10
200↑
20↑
1000↓
1*106↓
230
145
250±30
180±105
250↑
20↑
1000↓
1*106↓
230
145
除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers
Electrical characteristics: With good strength and good shielding, little resistance, with semi-conducting characteristics, used for wrapping of all kinds of power cables.
